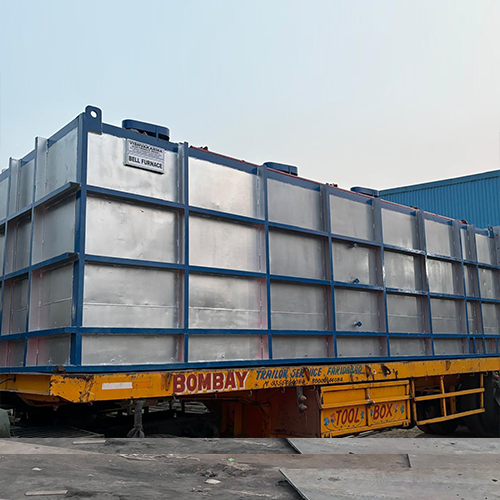

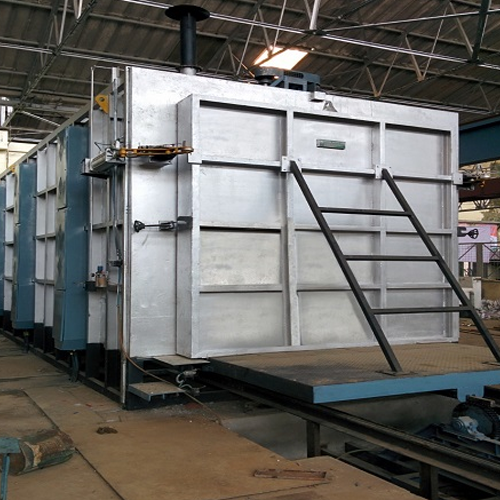

Stress Releaving Furnace
Vishvakarma Electronics (Regd.) offers a variety of Stress Relief Furnaces that include Car Furnaces, Drop- Bottom Furnaces, Continuous Belt Furnaces, Box Furnaces and Tip-Up Furnaces. Vishvakarma Electronics (Regd.) designs include heavy structural steel outer shell and frames, insulation designed for the specified operating temperatures, burners designed for optimal heating and uniformity and fans (when used) designed for optimal delivery of the heat to the product load. Operating temperature ranges extend to 2100°F. All furnaces feature PLC control with an HMI operator screen and can be designed to communicate with plant SCADA (supervisory control and data acquisition) systems.
Applications
Our industrial stress relief furnace can also be used in many applications including stress-relieving (normalizing), tempering, preheating, and annealing. Our furnaces can be found in the gas/oil, steel, heat-treating, aerospace, and automotive industries for processing steel, aluminum, titanium, and various alloy products.Features:
» Temperature Range – Upto 900°C
» From 50 to 1500 KW
» Batch capacity upto 200 MT.
» Standard Applications – Stress Relieving
» Insulation – Vacuum Formed Ceramic Fibre Boards / Ceramic Fibre Blanket & Module / Brick Lining
» Heating Media Options – Electric / Gas Fired / Oil Fired
» Heating Elements – Nichrome Wire / Special Alloy Resistance Heating Wire / Silicon Carbide Rod Type
» Sealing of the vertical lift doors and bogie through pneumatically operated soft seal clamps to ensure no ingress of cold air.
» Furnace Classification – Class 2 / Class 3
» Instrumentation – Thyristor, Programmable Temperature Controller, Temperature Recorder, PLC, SCADA, HMI
